SRG-R

With this type, the LM block has a smaller width (W) and tapped holes.
Used in places where the space for table width is limited.

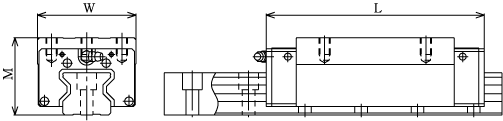

Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SRG 25R 40 48 95.5 27.9 57.5
SRG 30R 45 60 111 39.3 82.5
SRG 35R 55 70 125 59.1 119
SRG 45R 70 86 155 91.9 192
SRG 55R 80 100 185 131 266
