SRG-SLV

The LM block has the same cross-sectional shape as model SRG-LV, but has a longer overall LM block length (L) and a greater rated load.

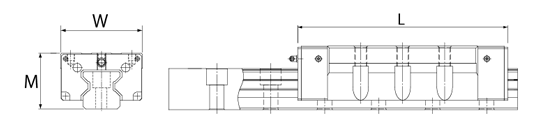

Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SRG 65SLV 90 126 380 352 811 — — —
