SRS-S

Overall LM block length (L) is less than that of model SRS-M.

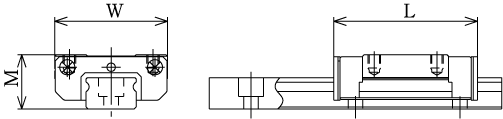

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SRS 7S 8 17 19 1.09 0.964 —
SRS 9XS 10 20 21.5 1.78 1.53
SRS 12S 13 27 25 2.70 2.10 —
SRS 15S 16 32 32 4.50 3.39



Description
* Descriptions are pdf files
