This model has a larger overall LM block length (L), width (W), rated load and permissible moment than model SRS5M. Mounting dimensions are interchangeable with RSR5WM.

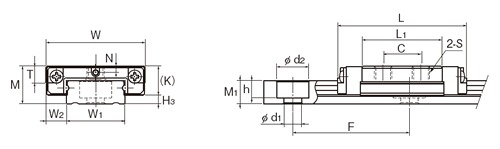

Dimensional drawing

Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M
Width
W
Length
L
Dynamic
rating
C
Static
rating
C0
mm mm mm N N
SRS 5WN 6.5 17 28.1 746 996



Description
* Descriptions are pdf files
