SSR-XV

This type has the same cross-sectional shape as SSR-XW but has a shorter overall LM block length (L).

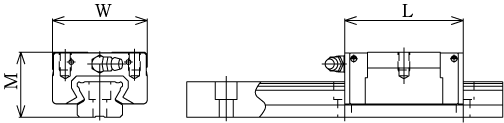

Dimensional drawing



Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SSR 15XV 24 34 40.3 9.1 9.7
SSR 15XVM 24 34 40.3 9.1 9.7
SSR 20XV 28 42 47.7 13.4 14.4
SSR 20XVM 28 42 47.7 13.4 14.4
SSR 25XV 33 48 60 21.7 22.5
SSR 25XVM 33 48 60 21.7 22.5



Description
* Descriptions are pdf files.
